Product Description:Expanded PTFE for Spiral Wound Gasket FillerExpanded PTFE fo...
Description:

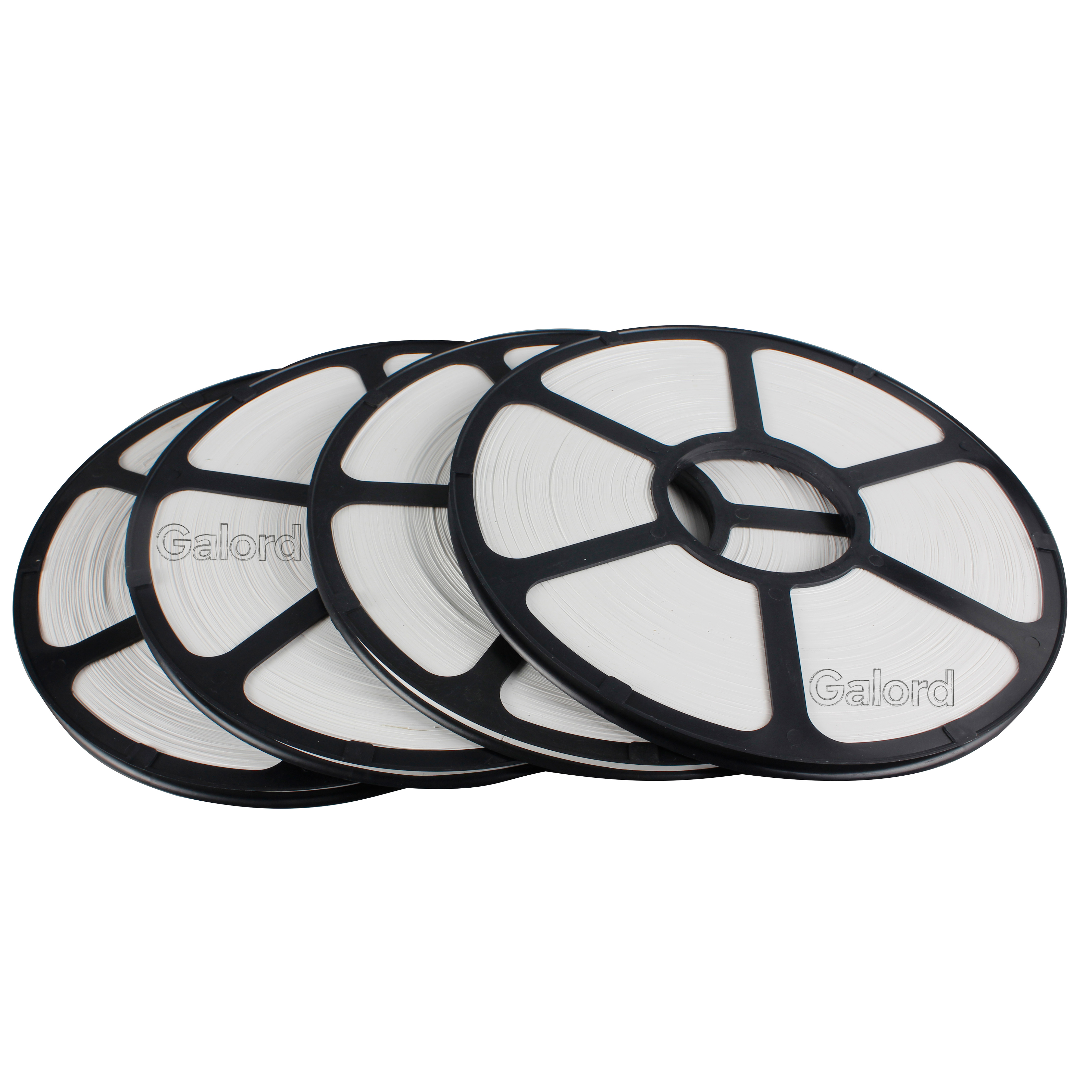

The dedicated PTFE tape for SWG is a high-purity (ePTFE) filler material specifically designed for use in spiral wound gasket assemblies. This PTFE tape is made of 100% ptfe，it offers excellent chemical resistance, wide temperature stability, and high resilience, making it ideal for demanding sealing applications in corrosive environments.
Key Features：
Pressure Capability: It can be used under high sealing pressures typical of spiral wound gaskets.
Tape Dimensions: Typically available in widths such as 3.9–4.5 mm or 5.6–6.0 mm, with thickness ranging from 0.5–1.0 mm depending on design.
Popular size：
4.4mmx0.5mm 5.7mmx0.5mm 5.9mmx0.5mm 6.3mmx0.5mm
5.7mmx0.8mm 5.9mmx0.8mm
Technical Data：
Density | 0.8±0.05 g/cm3 |
Volatile Matter | 0.14% |
Tensile Strength | 7.44 Mpa |
PH | 0 - 14 |
Elongation at break | 240% |
Hardness | 58HA |
Tensile strength | 12 Mpa (120 bar) |
Data sheet:
| Item | Unit | Value |
|---|---|---|
| Temperature Limitation | ℃ | -120~260 |
| Tensile Strength | MPa | 8.5 |
| Elongation | % | 40.3 |
| Thickness | mm | 0.5~1.0 |
| Width | mm | 3.5/4.2/5.6/5.9/6.3 |
| Density | g/cm3 | ≤1.5 |
| PH Range | 0~14 |
